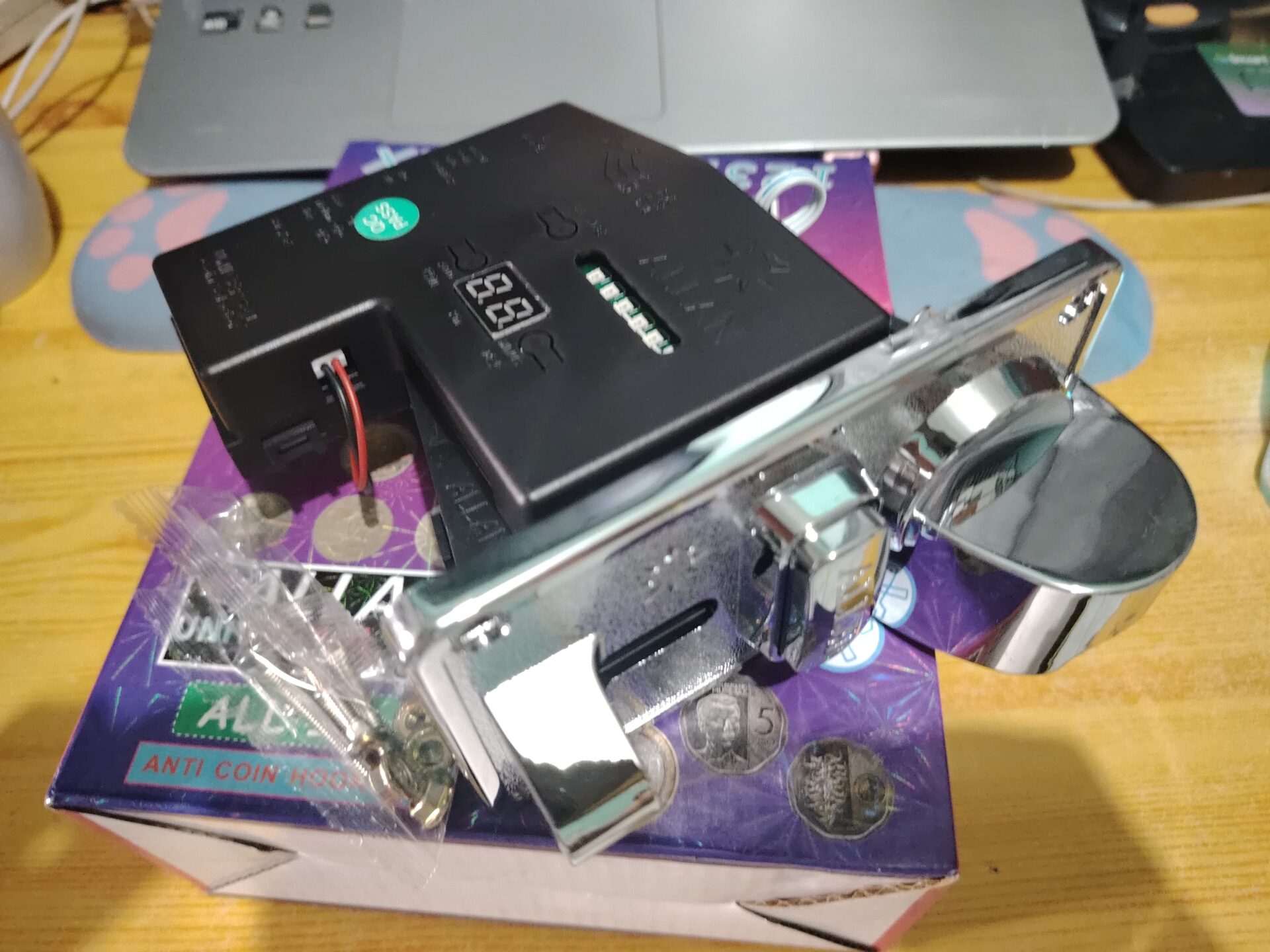

1239 PROMAX COINSLOT

Description

Brand: ALLAN
Model: 1239A PRO MAX
Weight: 320g
Dimensions: 10.2 x 6.5 x 3.1 cm
Warranty: 12 Month
Supported Coins: ₱1 / ₱5 / ₱10 /₱20 various token coins
Detection Speed: ≤0.6 seconds
Output Type: Pulse signal (compatible with Arduino / Piso WiFi boards)
Anti-Cheating: Anti-hook and counterfeit coin protection

Applications: Piso WiFi machines, vending machines, arcade cabinets, timer devices, etc.

Interface Overview:

VCC (+12V Power Input) – Supplies DC 12V ±10% to power the coin acceptor.
GND (Ground) – Power ground connection.

COIN / OUT (Pulse Signal Output) – Sends a pulse signal to the controller each time a valid coin is detected. Compatible with Arduino, Piso WiFi controllers, and timers.

COUNTER (Optional) – Connects to an external mechanical or digital counter for coin counting.

INHIBIT (Optional) – Control signal to enable or disable coin acceptance.

Typical 5-Pin Wiring:

Red: +12V
Black: GND
Yellow: COIN (Pulse Output)
White: INHIBIT (Optional)
Green: COUNTER (Optional)

Key Features:

1. Multi-Coin Compatibility: Supports ₱1, ₱5, ₱10, 20 and various token coins.
2. Fast & Accurate Detection: Recognizes coins in ≤0.6 seconds with high precision.
3. Anti-Cheating Design: Resistant to hooks, fake coins, and electromagnetic interference.
4. Pulse Output: Fully compatible with Arduino, Piso WiFi, and other control boards.
5. Durable Build: Heavy-duty construction for long-term use in commercial environments.

Why Choose ALLAN 1239A PRO MAX Coin Acceptor?

1. Multi-Coin Compatibility: Accepts ₱1, ₱5, ₱10, and most token coins with high precision.
2. Fast & Accurate Detection: Processes coins in less than 0.6 seconds with >95% accuracy.
3. Advanced Anti-Cheating Design: Built with anti-hook, anti-counterfeit, and anti-interference protection.
4. Easy Integration: Pulse signal output compatible with Arduino, Piso WiFi, and vending controllers.
5. Durable & Reliable: Heavy-duty construction for long-term commercial use.
